About

Specialists in the rubber business since 1947 and today KRAIBURG employees have reached approximately 2,500 employees. Proudly KRAIBURG turnover in 2019: approx. 580 Million EUR.

In 1968 we started manufacturing, high-quality vulcanized rubber floorings for animal husbandry, 100% made in Germany.

All BELMONDO® rubber floorings have been designed for the special needs of horses and for different applications: there are different surfaces and softness degrees for inside and outside use, for dry and for wet areas, for lying, standing or walking.

 We give 5 years warranty, an expected lifetime of 10 years or even more (15 years) for indoor areas.

KRAIBURG Quality

We were the first company worldwide to register our products with the German Agricultural Society (DLG) for PAH testing, and we passed with flying colours! As part of the “Continuous Monitoring” quality seal, our products are subject to regular testing in terms of responsible environmental and consumer protections.

Our Products

Use: Horse Box

Model: Basic

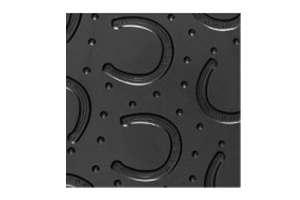

Surface: horseshoe profile

Lower side: grooves

Thickness: 18 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges



  • comfortably soft and slip-resistant for loosebox and lying area
  • easy installation due to interlocking Joints
  • suitable for vehicle traffic

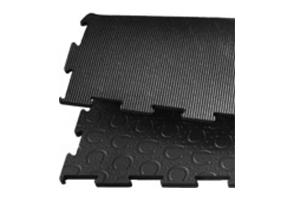

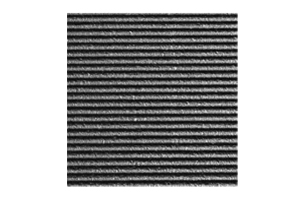

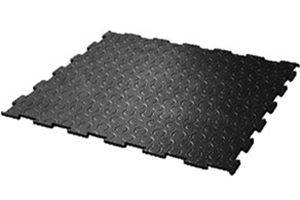

Use: Horse Box

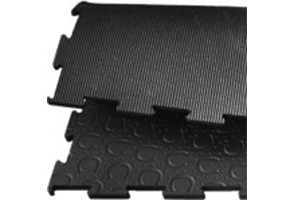

Model: CLASSIC

Surface: horseshoe profile with wear optimised top coat

Lower side: grooves

Thickness: 18 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges

Thickness: +3/-2 mm

length + width: +/- 1.5 % (DIN ISO 3302-1 tolerance class M4)



  • reinforced surface for higher stress Areas
  • especially suitable for heavy or very active horses
  • comfortably soft and slip-resistant for loosebox and lying area
  • easy installation due to interlocking Joints
  • suitable for vehicle traffic

Use: Horse Box

Model: Trend

Surface: horseshoe profile with top coat

Lower side: air cushions with rubber ridges

Thickness: 28 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges



  • heat insulating air cushion for horse-friendly softness
  • supports safe standing up and lying down
  • rubber ridges on lower side for better hygiene
  • easy installation due to interlocking joints
  • suitable for vehicle traffic

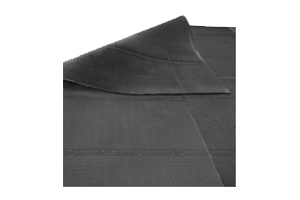

Use: Horse Box

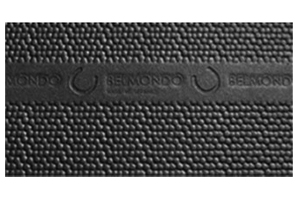

Model: COVER

Surface: pebbled profile

Lower side: pebbled profile

Thickness: 15 mm

Width x length: 262/348/440/525 cm × 250 cm – 600 cm

in 10 cm increments

Dimensions: 40 cm × 40 cm

  • individual large-area flooring system without joints
  • heat insulating and slip-resistant for loosebox and lying area
  • areas up to 5.25 × 6 m can be laid out in one piece
  • suitable for vehicle traffic

Use: Wall

Model: Rodeo

Surface: wooden planks look

Lower side: grooves

Thickness: 12 mm

Dimensions: 130 cm × 350 cm



  • shock-absorbing – protects hooves and legs
  • protects the wall
  • long life cycle
  • makes the stable a quieter place
  • attractive wooden planks look
  • easy to cut

Use: Corridor

Model: Walkway

Surface: horseshoe profile

Lower side: grooves

Thickness: 12 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges



  • well suitable also for horse trailers or as version to go (e. g. for tournaments)
  • slip-resistant and noise-reducing
  • lower mat thickness for swing doors
  • easy installation due to interlocking joints
  • not suitable for vehicle traffic*

Use: Corridor

Model: Walkpro

Surface: mosaic design with top coat

Lower side: grooves

Thickness: 16 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges

  • improved wet slip resistance
  • appealing mosaic design
  • easy to sweep with a broom due to the special surface
  • easy installation due to interlocking joints
  • suitable for vehicle traffic*

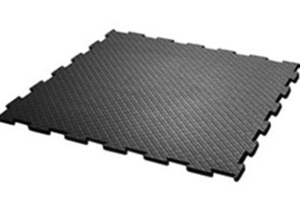

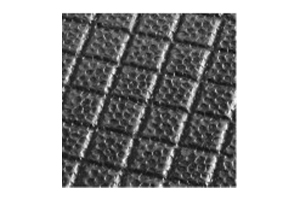

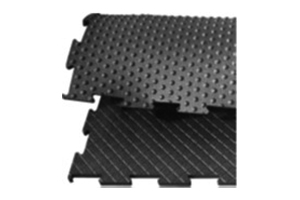

Use: Out Door

Model: PADDOCK

Surface: rhombic profile with wear optimised top coat

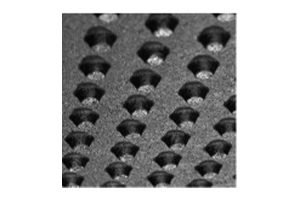

Lower side: studs (5 mm)

Thickness: 24 mm

Dimensions : 1 m × 1 m, 4 sides with puzzle shaped edges



  • improved wet slip resistance
  • good drainage due to studs on lower side
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low

temperatures)

  • easy to clean
  • easy installation due to interlocking joints
  • suitable for vehicle traffic

Use: Washing Area

Model: Walkpro

Surface: rhombic profile (36) with top coat

Lower side: studs (5 mm)

Thickness: 24 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges

  • improved wet slip resistance
  • good drainage due to studs on lower side
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low temperatures)
  • easy to clean
  • easy installation due to interlocking joints
  • suitable for vehicle traffic

Use: Washing Area

Model: Paddock

Surface: rhombic profile (36) with top coat

Lower side: studs (5 mm)

Thickness: 24 mm

Dimensions: 1 m × 1 m, 4 sides with puzzle shaped edges

  • improved wet slip resistance
  • good drainage due to studs on lower side
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low temperatures)
  • easy to clean
  • easy installation due to interlocking joints
  • suitable for vehicle traffic

Use: Walker

Model: Motion

Surface: mosaic design

Lower side: multisquare profile (3 mm)

Thickness: 21 mm

Dimensions: individually tailor-made



  • tailor-made for every horsewalker
  • proved wet slip resistance
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low temperatures)
  • easy to clean
  • suitable for vehicle traffic

Use: Walker

Model: Horsewalker

Surface: rhombic profile (50) with top coat

Lower side: multisquare profile (3 mm)

Thickness: 21 mm

Dimensions: individually tailor-made



  • tailor-made for every horsewalker
  • improved wet slip resistance
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low temperatures)
  • easy to clean
  • suitable for vehicle traffic*

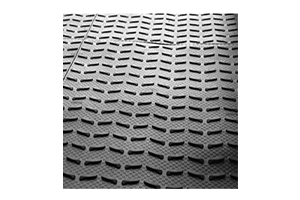

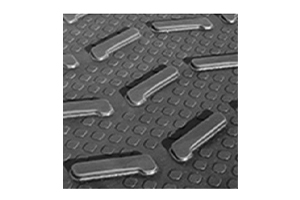

Use: Ramps & Swiming pools

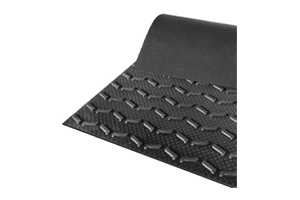

Model: Step Mat

Surface: rib profile with wear optimised top coat

Lower side: grooves

Thickness:  24 mm

Dimensions : 1 m × 1 m, 4 sides with puzzle shaped edges

  • V-shaped, raised rib profile improves the hoof´s foothold
  • square imprinting between the ribs supports the grip
  • tested in practice on up to 15 % slope so far
  • weatherproof and UV resistant
  • frozen matter can be loosened easily (elastic even at very low

temperatures)

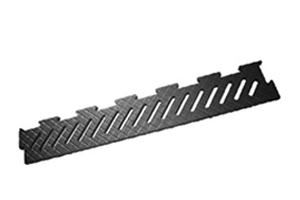

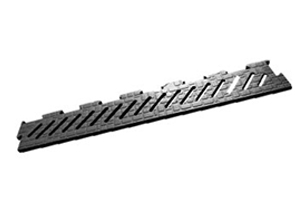

Use: Water Drainage

Model: DRAIN GUTTER

Special mat pieces for fitting on drain gutters

Dimensions: 16.7 cm × 100 cm

Thickness: +3/-2 mm

length + width: +/- 1.5 % (DIN ISO 3302-1 tolerance class M4)

The tolerances also apply within the mat.

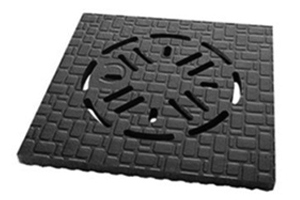

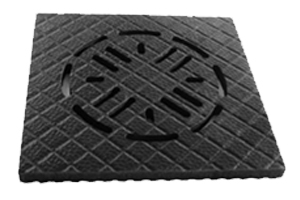

Use: Water Drainage

Model: GULLY

Special mat pieces for fitting on drain gutters

Dimensions: 40 cm × 40 cm

Thickness: +3/-2 mm

length + width: +/- 1.5 % (DIN ISO 3302-1 tolerance class M4)

Advantage

Installation – handling

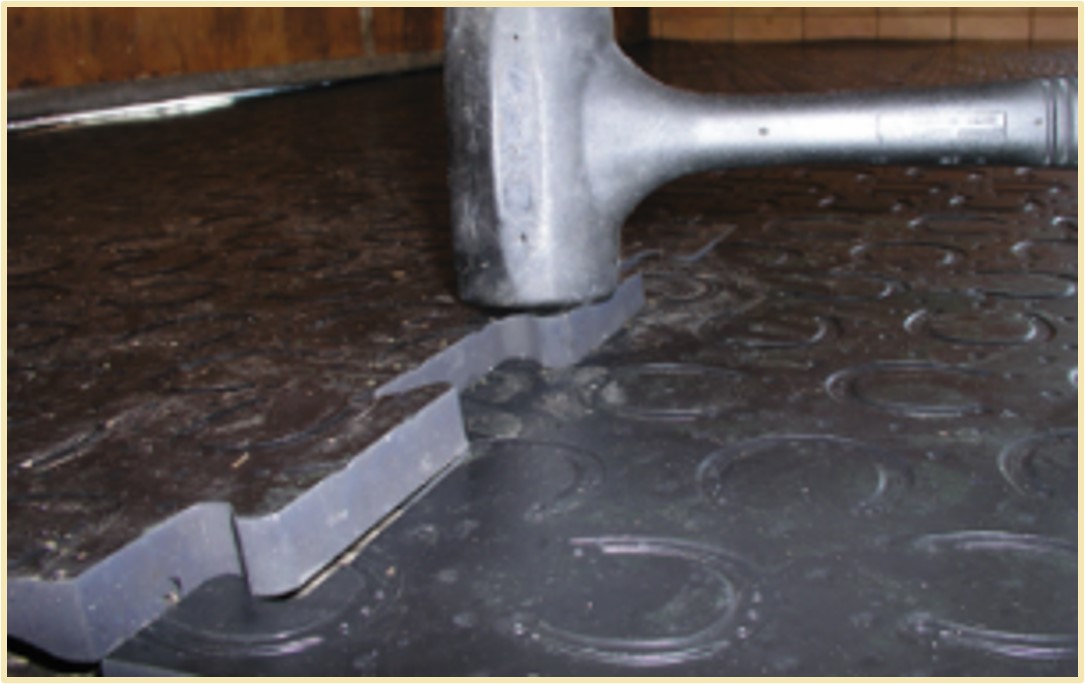

Interlocking mats

quick to install
easy to exchange / extend

Precise interlocking design

 mats are very stable when connected

Hygiene

Solid, vulcanized rubber

does not absorb any moisture –> hygiene!

  • BELMONDO® Rubber Floorings are installed float mounted on paved ground. The surface of the vulcanized rubber floorings doesn’t absorb any fluids. Due to the exact cut by water jet technology the single interconnections apply perfectly.
  •  If it is necessary BELMONDO® can be treated with a high-pressure cleaner, as well as with standard cleaning agents. Also bacteriological disinfection can be done anytime.

Durability

Resistant and durable

suitable for every type of shoe (also studs, pins)

  • Solid vulcanized BELMONDO ® Rubber Floorings provide high performance and long life.

  • BELMONDO ® are well proven in hot climate region, like e.g. Middle East, and for intensive use.

  • We give 5 years warranty, expected lifetime 10 years or even more (15 years) for indoor areas.

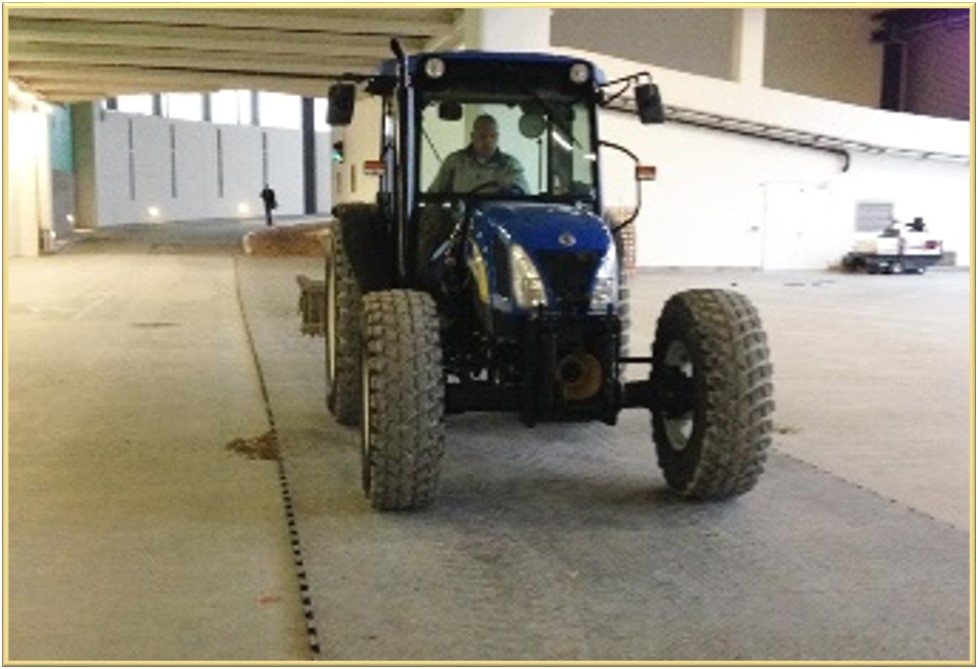

Trafficability

Suitable for vehicle traffic

subject to compliance with trafficability guidelines

  • BELMONDO® mats (except Kingsize Duo, Walkway, Kingsize) can be driven on with standard equipment such as farmyard loaders or tractors with authorized pneumatic tyres at the recommended inflation pressure up to max. 2.5 bar.

  • BELMONDO® Step can be driven on up to a slope of max. 10 %.

  • Important: Subject to our BELMONDO® trafficability guidelines!

Quality Product Testing

crack formation Test

Load Test

tensile strength and breaking strain Test

Durability and wear Test

References

  • Royal Oman Police, Oman
  • Royal Cavalry of Oman: Oman
  • Al Shaqab Equestrian Center, Qatar
  • Qatar Equestrian and Racing Club, Qatar
  • Equestrian Federation, Qatar
  • Al Khor Horse Owners Complex, Qatar
  • Al Wathba Stables, UAE
  • Warsan Stables, UAE
  • H.H. Sheikh Hamdan Al Maktoum, UAE
